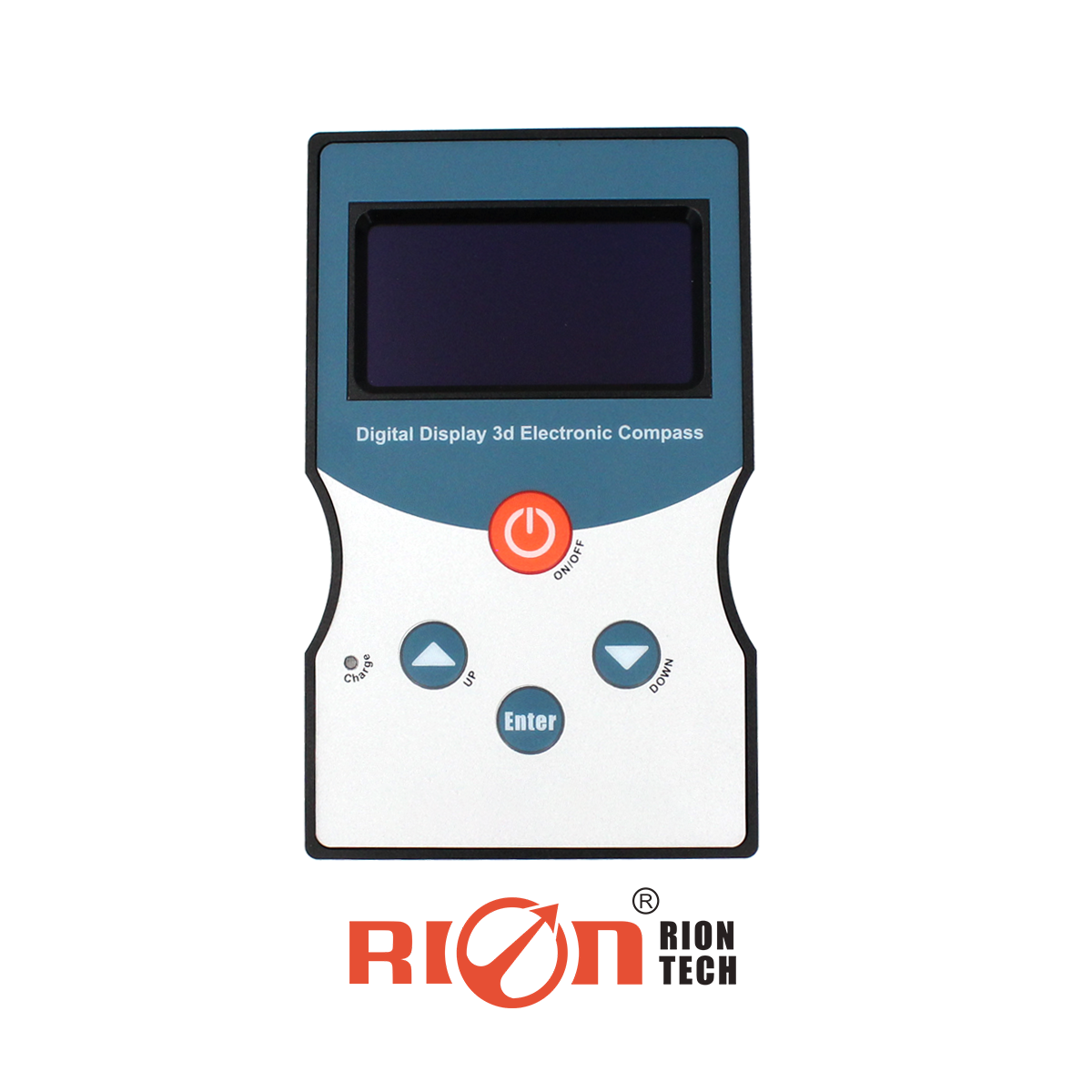

    SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°~0.5° Course Angle Accuracy and 360° Measuring Range

    Ask Lasest Price
    Brand Name : RION
    Model Number : SDC620B
    Price : $580.00/Pieces
    Payment Terms : T/T,Paypal
    Supply Ability : 1000/month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°~0.5° Course Angle Accuracy and 360° Measuring Range

    SDC620B 3.7V Lithium Battery High Precision Inclinometer Antenna Servo Control



    FEATURES

    ★ Heading angle accuracy: 0.3° ~ 0.5°

    ★ Angle compensation range: ± 85°

    ★ With soft and hard magnetic field calibration

    ★ Heading angle measurement range: 360°

    ★ 60 hours of continuous working endurance

    ★ Reset function

    ★ IP54 protection grade

    ★ Integrated design of handheld and dovetail installation


    APPLICATION

    ★ Navigation mapping

    ★ GPS integrated navigation

    ★ Antenna servo control

    ★ Pile driver angle real-time monitoring

    ★ Map Redrawing Tool

    ★ Oceanographic survey instrument

    ELECTRICAL CHARACTERISTICS

    SDC620B-NParameter
    Compass heading parameterCourse angle accuracy0.3°~0.5°
    Measuring range360°
    Resolution0.1°
    Repeatability0.1°
    Roll Angle0.1 ° < 60 ° (measuring range)
    0.2 ° < 180 ° (measuring range)
    Roll angle measurement range±180°
    Resolution0.1°
    Pitch Angle0.1 ° < 60 ° (measuring range)
    0.2 ° < 85 ° (measuring range)
    Pitch Angle Measurement Range±85°
    CalibrationHard iron calibrationHave
    Soft iron calibrationHave
    Interface characteristicsStartup delay< 50 ms
    Maximum sample rate20Hz/s
    Communication rate9600 baud
    Output formatRION 68 protocol
    Power sourceSupport voltageInternal 3.7 V rechargeable lithium battery
    Operating current50mA (typical)
    Charging current

    Fast charging mode 1.75 A,

    fully charged in about 4 hours

    Normal mode 0.5A,

    full in about 12 hours

    EnvironmentOperating temperature-20℃~+70℃
    Storage temperature-20℃~+70℃
    Vibration resistance3000g
    Physical propertiesConnector4 PIN Remo air plug
    Cable lineStandard 1m cable
    Size137.3×83×37mm
    Weight≤ 520g (excluding cable)
