DMI420 Slope Meter High Precision Digital Inclinometer Full Range 2
Axis Digital Inclinometer
▶PRODUCT DESCRIPTION
DMI410&DMI420 is a digital display inclinometer which took RION
company three years to develop professional for various industry
angle control and measuring.The core of this product is using the
micro-mechanical control principle, dual-core measurement unit, can
use the Y-axis to compensate X-axis during the measurement
process,a and then to use RION patent interleaved and temperature
compensation model algorithm to play absolute operation advantages
of the micro-mechanical electronic principles,to ensure that the
instruments measurement with the long-term stability and
repeatability. MI410 single axis ±180° measurement, DMI420 dual
axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree
full-scale,fast response, stable data, products specially designed
for the sides and bottom with magnetic adsorption installation,
both sides of the benchmark can be measured and using normally,very
convenient to use,This product series has strong scalability,
convenient & practical application and industrial reliability, has
absolute cost advantage and has an absolute competitive advantage
in the international market !
▶KEY FEATURES
★ Auto-angle interleaved compensation function
★ Auto temperature drift compensation
★ User can calibrate by himself
★ Built-in recharge industry battaries
★ Night vision fours colors screen
★ IP54 protection class
★ Angle/length dual unit switch
★ 100g High anti-impact
Parameter :
PARAMETERS
DMI410 DMI420
Angle measure range
±180 °
±90 °
Length measure range
0~±999.9mm/m
0~±999.9mm/m
Measure axis
Single axis
Dual axis
Angle measure accuracy
0.05 °(full range)
0.05 °(full range)
Angle measure resolution
0.01°
0.01°
Length measure accuracy
0.9mm/m(full range)
0.17mm/m(full range)
Length measure resolution
0.17mm/m
0.1mm/m
LCD visible area size
L40*W32mm
Working temperature
-10℃～ +70℃
Working humidity
85℃
Power supply
3.7V Charging Lithium battery
Ideal charging time
3h
Battery continuous working time
8h(±0.5)
Data output signal
Standard 5Pin USB connector
Anti-vibration
10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance
10grms,10～100Hz
Weight
125g
Waterproof level
IP54
Material
Metal aluminum
Size
L83*W53*H19.2mm

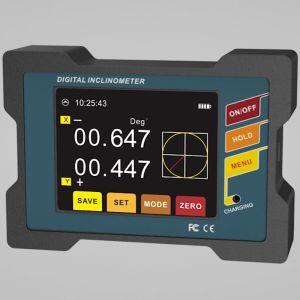

Product Photos :
Order Process :
Before order pls contact us for confirm detailed informaiton such
as model ,price ,lead time ...etc .
