Model Number : | HDA436T-VR |
Brand Name : | RION |
Price : | 162 USD/Pieces |
Certification : | CE, ISO |
Payment Terms : | T/T, PayPal |
Supply Ability : | 5000pcs/month |
Delivery Time : | 7 days for sample order |

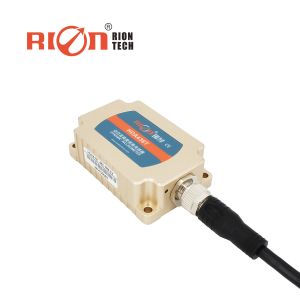

HDA436T-VR Dynamic Digital Tilt Sensor Euler Angle Filter Algorithm
▶ PRODUCT DESCRIPTION
HDA536T is an advanced digital MEMS dynamic tilt sensor developed
by RION Technology. It is capable of measuring the attitude
parameters (roll, pitch, and azimuth) of moving platforms and is
optimized for tilt angle measurements in dynamic or vibrating
environments.
Equipped with a high-precision accelerometer and gyroscope, the
HDA536T incorporates the Kalman filter algorithm, enabling accurate
real-time motion data acquisition under dynamic conditions. It
supports multiple output interfaces such as RS485, RS232, and TTL,
providing excellent versatility and expandability.
The device employs a non-contact measurement method to directly
output real-time attitude and inclination data, ensuring ease of
use without requiring alignment or calibration of the installation
points. With integrated high-precision AD and gyro units, it
compensates in real-time for factors such as nonlinearity,
cross-axis coupling, temperature variations, and centrifugal
acceleration. This minimizes errors caused by acceleration-related
interference, enhancing dynamic measurement precision.
Designed for reliability in demanding motion scenarios and harsh
environments, this dual-mode (dynamic and static) sensor exhibits
excellent resistance to electromagnetic interference. It is an
ideal solution for industrial automation, control systems, and
attitude measurement applications.
HDA536T | Condition | Index | |||||
Measuring | / | Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at
power-down is 0 °) | |||||
Measuring axis | / | X axis / Y axis / Z axis | |||||
Resolution | 0.01° | ||||||
Static accuracy | @25℃ | ± 0.05° | |||||
Dynamic accuracy | @25℃ | ± 0.3° | |||||
Bias Instability (Allan) | 8°/h | ||||||
Zero point temp. coefficient | -40~85° | ±0.01°/℃ | |||||
Sensitivity temp. coefficient | -40~85° | ≤100ppm/℃ | |||||
Power-on startup time | 1S | ||||||
Response time | 0.01S | ||||||
Output signal | RS485/RS232/TTL | ||||||
Electromagnetic compatibility | According to EN61000 and GBT17626 | ||||||
MTBF | ≥ 50000 hours / time | ||||||
Insulation resistance | ≥100 Megohm | ||||||
Impact resistance | 100g @ 11ms, Triaxial and identical (half sine wave) | ||||||
Anti- vibration | 10grms,10~1000Hz | ||||||
Protection grade | IP67 | ||||||
Cable | 2m length, wear-resistant, oil-proof, wide temperature, shielded
cable 5 * 0.34mm2, wire weight 100g | ||||||
Weight | 295g (excluding cable) |
![]() |
